Good Seal Low Friction Coefficient Oil Guide Ring Assembled In Shock Rod Guide

Name: Good Seal Low Friction Coefficient Oil Guide Ring Assembled In Shock Rod Guide
Brand: XIAYI
Price: 1 USD

Wholesale Good Seal Low Friction Coefficient Oil Guide Ring Assembled In Shock Rod Guide from china suppliers

Brand Name : XIAYI

Model Number : guide ring

Certification : ISO9001:2008

Place of Origin : NINGBO,CHINA

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100,000 pcs per month

Delivery Time : 7-15 working days

Packaging Details : Standard Export Wooden Case

Part name : guide ring

COLOR : black

Material : filled PTFE

Density : 2.2

Temp. : -180~260

Tensile strength : 14.0MPa

Contact Now

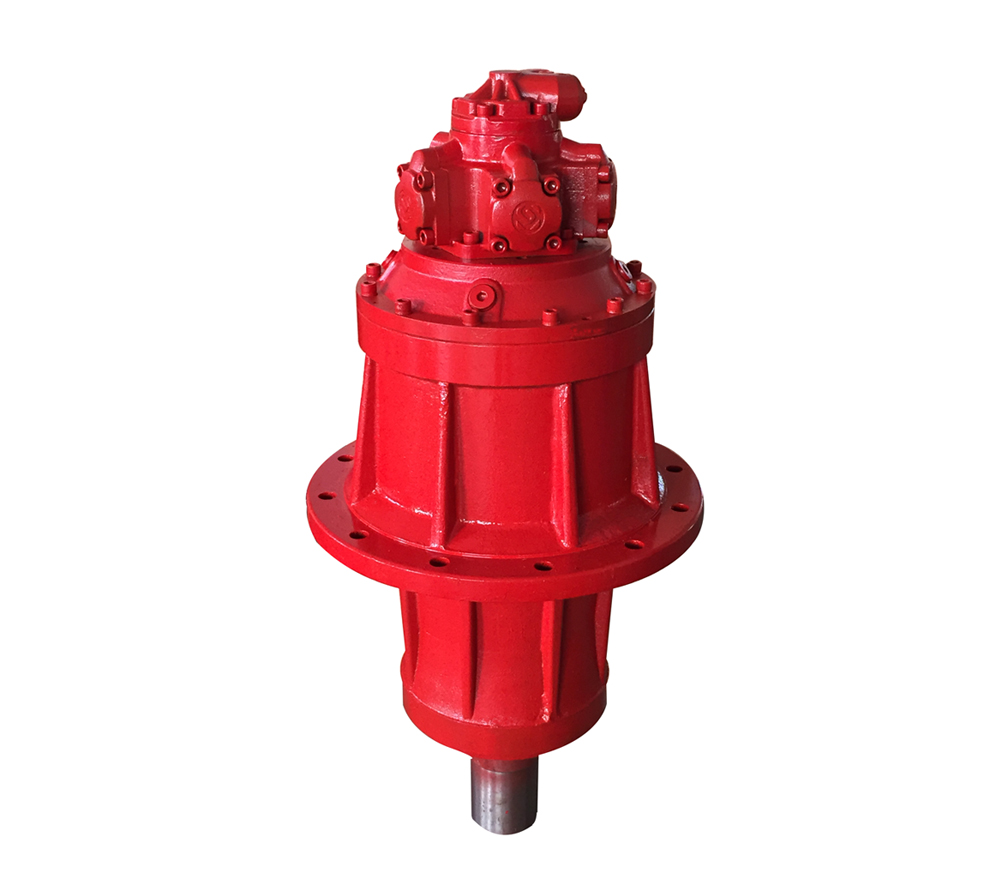

Part Name: Max Input Speed 400 RPM Rotary Reducer Box Series Used In Concentrator

Part Model: DIP010069(99)AI

Especially used in concentrator

Applications:

Especially suitable for the center and peripheral transmission of the concentrator, coal washing, can also be used in the port crane, construction tower crane.

Mechanical type	concentrator
OD of concentrator(m)	6
Depth of concentrator(m)	3
Sedimentation area of concentration tank(m²)	28.3
Height of rake(m)	0.2
Time of raking frame(min/turn)	3.7
Handling capacity(ton/hour)	62
Total weight(ton/set)	8.8

Technical parameters

Max Torque

N.m

Reduction Ratio

Max Input Speed

rpm

Max Pressure

MPa

Brake Torque

N.m

Min Start Pressure

MPa

Motor Model

Weight

10000

69(99)

400

----

NIM2-1001

320

The DIP series rotary reducer a series of new products specially designed for the coal washing and concentration equipment with relatively large speed ratio. The load starting performance is much better than the original scheme of adding cycloidal pinwheel reducer to the motor. The gear box is not hot after long running, and the noise is very low. It can replace the same type of rotary reducer abroad. In order to meet the requirements of customers, various types of output flanges can be designed to meet the requirements of different working conditions. Thus widely used in construction engineering, railway, highway, shipping, oil, coal, metallurgy and other machinery. According to different needs, users can choose the brake and integrated with various functions of the distributor, which can get good reliability.

Detail drawings:

Other pictures:
